Lithium Polymer Battery Cell
>
Lithium Polymer Battery Cell 3.7V 303040 300mAh 1.11wh Rechargeable Lipo Battery For LED Lamp

Lithium Polymer Battery Cell 3.7V 303040 300mAh 1.11wh Rechargeable Lipo Battery For LED Lamp

Nama merek: RESKY
Nomor Model: LP303040
MOQ: 10 pcs
harga: dapat dinegosiasikan
Rincian kemasan: Kotak kertas
Ketentuan Pembayaran: T/T, Western Union
Informasi Rinci
Tempat asal:
CINA
Sertifikasi:
CE, RoHS, MSDS, Un38.3
Model No.:
LP303040
Membentuk:
Baterai persegi
Kapasitas nominal:
300mAh
Berat:
11g
Siklus Kehidupan:
500 siklus
Jaminan:
12 bulan
Pengiriman:
UPS, DHL, FedEx, TNT, melalui udara, melalui laut, garis khusus
Waktu tunggu:
3-7Hari kerja
Spesifikasi:
3*30*40mm
Kode HS:
8507600090
Menyediakan kemampuan:
50000pcs/hari
Menyoroti:

3.7V rechargeable lithium polymer battery

,

303040 Lipo battery for LED lamp

,

300mAh lithium polymer battery cell

Deskripsi Produk
Product Description


Lithium Polymer Battery Cell 3.7V 303040 300mAh 1.11wh Rechargeable Lipo Battery For LED Lamp



NO. Items Specifications
1 batteries  3.7v 750mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 750mAh     0.2C Discharge
5 Charge current

Standard Charging:0.5C
Rapid charge:     1.0C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time

Standard Charging:2.75hours(Ref.)
Rapid charge:     2hours(Ref.)
8 Max.charge current 1.0C
9 Max.discharge current 1.0C
10 Discharge cut-off voltage 2.5V 0.25V(0.2C)
11 Operating temperature Charging:  0 °C ~45 °C
Discharging:0 °C ~45 °C
12 Storage temperature -10°C~ +45 °C
13  Dimension Length: 40±2mm (not including tabs)
Width: 30±0.5mm
Thickness:3±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 cycle time ≥500times



Product features:



1. High energy density

The weight of lithium polymer batteries is half that of nickel cadmium or nickel hydrogen batteries of the same capacity, and the volume is 40-50% that of nickel cadmium and 20-30% that of nickel hydrogen.



2. High voltage

The operating voltage of a single lithium polymer battery is 3.7V (average), which is equivalent to three nickel cadmium or nickel hydrogen batteries connected in series.



3. Good safety performance

The outer packaging is aluminum-plastic packaging, which is different from the metal shell of liquid lithium batteries. Due to the use of flexible packaging technology, internal quality hazards can be immediately displayed through deformation of the outer packaging. Once a safety hazard occurs, it will not explode but only swell.



4. Long cycle life

Under normal conditions, the charge and discharge cycle of lithium polymer batteries can exceed 500 times.



5. No pollution

Lithium polymer batteries do not contain harmful metal substances such as cadmium, lead, mercury, etc.



6. No memory effect

The memory effect refers to the phenomenon in which the capacity of nickel cadmium batteries decreases during the charging and discharging cycles. Lithium polymer batteries do not exhibit this effect.



7. Fast charging

Using a constant current and constant voltage charger with a rated voltage of 4.2V can fully charge lithium polymer batteries within one to two hours.



8. Complete range of models

Complete range of models, wide capacity and size range, can be designed according to customer needs, with a single thickness of 0.8-10mm and a capacity of 40mAh~20Ah.



Application:



Portable Devices:



Laptops and Notebooks: Li-poly batteries contribute to the sleek and lightweight design of modern laptops.



Portable Game Consoles: These devices rely on Li-poly batteries for extended gaming sessions without being tethered to a power outlet.



E-readers: Devices like Kindles use Li-poly batteries to ensure long reading times on a single charge.



Industrial and Commercial Applications:



Automated Guided Vehicles (AGVs): These vehicles use Li-poly batteries to navigate and perform tasks in warehouses and manufacturing environments.



Robotics: Li-poly batteries provide the power needed for robots to operate efficiently in various industrial and research settings.



Tools and Equipment: Cordless tools and other equipment often use Li-poly batteries for increased portability and runtime.

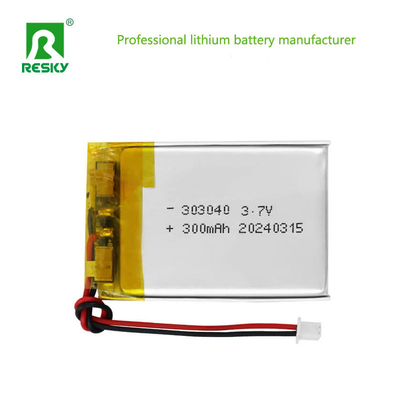

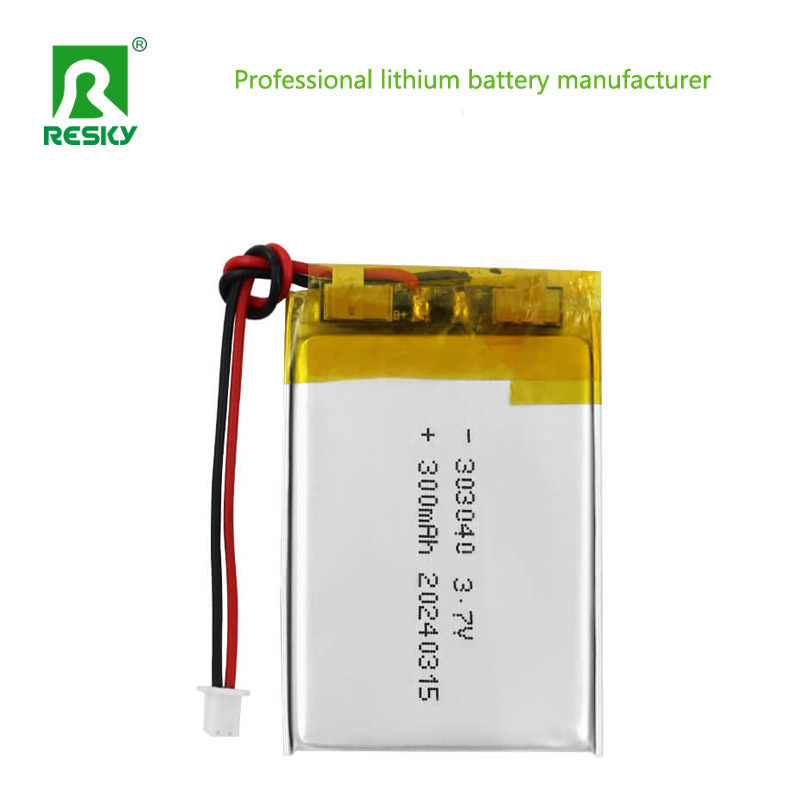

Picures:

Lithium Polymer Battery Cell 3.7V 303040 300mAh 1.11wh Rechargeable Lipo Battery For LED Lamp 0Lithium Polymer Battery Cell 3.7V 303040 300mAh 1.11wh Rechargeable Lipo Battery For LED Lamp 1Lithium Polymer Battery Cell 3.7V 303040 300mAh 1.11wh Rechargeable Lipo Battery For LED Lamp 2Lithium Polymer Battery Cell 3.7V 303040 300mAh 1.11wh Rechargeable Lipo Battery For LED Lamp 3Lithium Polymer Battery Cell 3.7V 303040 300mAh 1.11wh Rechargeable Lipo Battery For LED Lamp 4
