Lithium Polymer Battery Cell 802035 3.7V 500mAh 1.85wh Rechargeable Batteries For Learning Devices

Nama merek:	RESKY
Nomor Model:	LP802035
MOQ:	10 pcs
harga:	dapat dinegosiasikan
Rincian kemasan:	Paket baki melepuh dengan kotak kertas
Ketentuan Pembayaran:	Western Union, T/T.

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

CE, RoHS, MSDS,Un38.3,IEC62133

Model No.:

LP802035

Elektrolit:

Li (Nicomn) O2

Diisi ulang:

Dibebankan

Kapasitas nominal:

500mAh

Mengisi arus:

Arus Pengosongan Kontinyu:

Arus Pengosongan Maks:

Berat:

100 pcs

Jaminan:

1 tahun

Menyediakan kemampuan:

50000pcs/hari

Menyoroti:

802035 lithium polymer battery cell

3.7V rechargeable battery for learning devices

500mAh lithium polymer battery with warranty

Deskripsi Produk

Product Description

Lithium Polymer Battery Cell 802035 3.7V 500mAh 1.85wh Rechargeable Batteries For Learning Devices

NO.	Items	Specifications
1	batteries	3.7v 500mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	500mAh 0.2C Discharge
5	Charge current	Standard Charging:0.2C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref. )Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:35±0.5mm (not including tabs) Width:20±0.5mm Thickness:8±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥800times

Product features:

1. High security performance

2. Thin thickness, adjustable thickness

3. Lightweight

4. High energy density, compared to other types of lithium batteries, the same size capacity can be achieved

5. Low internal resistance and long cycle life

6. Flexible size available

7. Good discharge performance

Application areas:

Bluetooth earphones, smart wearables, GPS navigation devices, POS machines, power banks, learning devices, tablets, car navigation, MP3,MP4,MP5, Card insertion speaker, wireless mouse, Xiaomi display screen PSP built-in battery, Apple peripheral power supply, tablet computer, mobile DVD, laptop battery, wireless monitoring device, medical equipment, various instruments and meters, LED lamps, traffic signs, portable small appliances, various DIY instruments and meters, metal detectors, and other digital battery products.

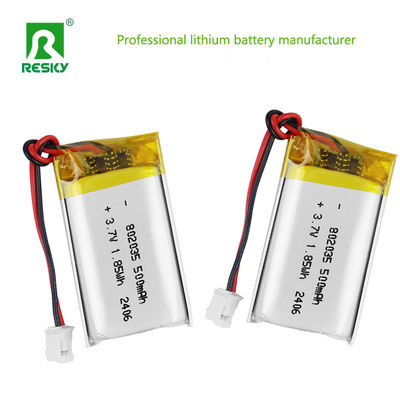

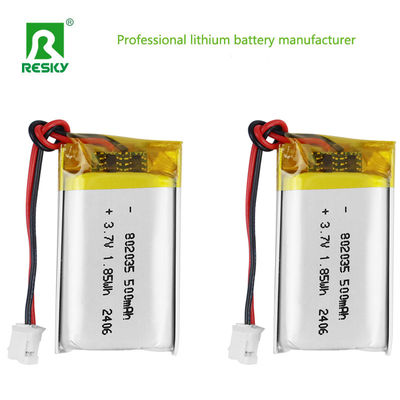

Product pictures:

Tag:

Baterai LiPO

Paket Baterai Litium Polimer

Baterai Li-polimer
