Lithium Polymer Battery Cell

Rechargeable Lipo Lifepo4 Batteries 803040 3.7v 1000mAh 3.7wh Solar Lithium Polymer Battery Cell

Semua Kategori

Pengisi daya baterai yang dapat diisi ulang

RC Aksesoris

Hubungi Kami

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Hubungi Sekarang

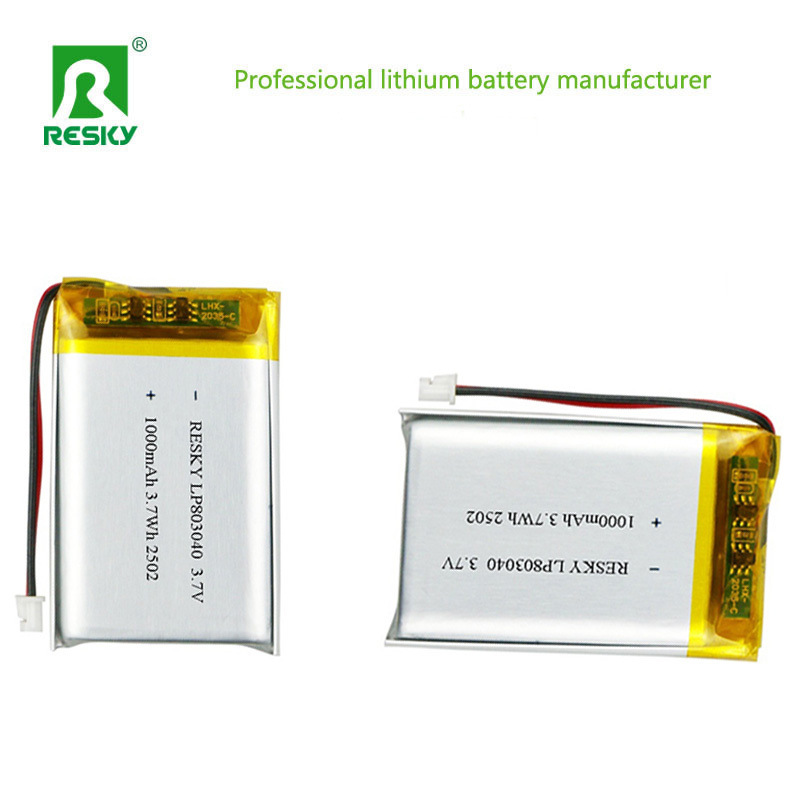

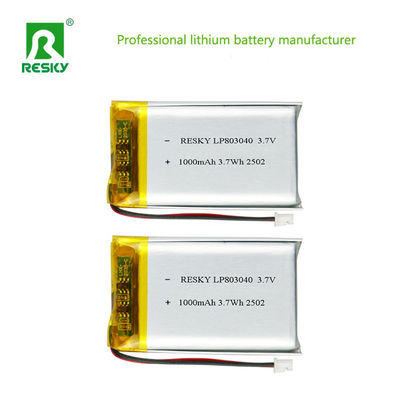

Rechargeable Lipo Lifepo4 Batteries 803040 3.7v 1000mAh 3.7wh Solar Lithium Polymer Battery Cell

Nama merek:	RESKY
Nomor Model:	LP803040
MOQ:	100 pcs
harga:	dapat dinegosiasikan
Rincian kemasan:	Kotak kertas
Ketentuan Pembayaran:	Western Union, T/T.

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

CE, RoHS, MSDS, Un38.3,IEC62133,ect

Elektrolit:

Li (Nicomn) O2

Kapasitas nominal:

1000mAh

Mengisi arus:

Arus Pengosongan Maks:

Berat:

Spesifikasi:

8*30*40mm

Kode HS:

8507600090

Menyediakan kemampuan:

100000pcs/hari

Jaminan:

12 bulan

Siklus Kehidupan:

500 kali

Menyediakan kemampuan:

50000pcs/hari

Menyoroti:

Rechargeable Lipo battery 1000mAh

Lifepo4 solar battery 3.7v

Lithium polymer battery cell 803040

Deskripsi Produk

Rechargeable Lipo Lifepo4 Batteries 803040 3.7V 1000mAh 3.7Wh Solar Lithium Polymer Battery Cell

High-performance rechargeable lithium polymer battery with 3.7V nominal voltage and 1000mAh capacity, ideal for solar applications and small to medium power devices.

Product Specifications

Electrolyte	Li(Nicomn)O2
Nominal Capacity	1000mAh
Charging Current	0.2C
Max Discharging Current	1C
Weight	19g
Specification	8×30×40mm
HS Code	8507600090
Supply Ability	100000PCS/Day
Warranty	12 months
Cycle life	500 times

Technical Details

Batteries: 3.7V 1000mAh LiPo battery
Charge voltage: 4.2V
Nominal voltage: 3.7V
Nominal capacity: 1000mAh (0.2C Discharge)
Charge current: Standard Charging: 0.5C, Rapid charge: 1.0C
Standard Charging method: 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
Charging time: Standard: 2.75 hours, Rapid: 2 hours
Max. charge current: 1.0C
Max. discharge current: 1.0C
Discharge cut-off voltage: 2.5V±0.25V (0.2C)
Operating temperature: Charging: 0°C~45°C, Discharging: 0°C~45°C
Storage temperature: -10°C~+45°C
Dimension: 40±0.5mm (L) × 30±0.5mm (W) × 8±0.2mm (T)
Drop Test: Passes 1m drop test twice onto concrete with no fire or leakage
Cycle life: ≥500 times

Performance Characteristics

Stable Voltage and Capacity: 3.7V nominal voltage provides stable power output with 1000mAh capacity
High Energy Density: Compact 8×30×40mm size delivers 3.7Wh of energy
Good Charge/Discharge Performance: Supports standard 0.2C (200mA) and fast 0.5C (500mA) charging
Wide Temperature Range: Operates from -20℃ to 60℃
Long Cycle Life: Maintains over 80% capacity after 500 cycles
Low Self-Discharge: Excellent storage characteristics

Protection Functions

Overcharge Protection: Cuts off at 4.28V±50mV
Over-discharge Protection: Activates at 2.4V±100mV
Overcurrent Protection: Prevents excessive discharge current
Short Circuit Protection: Immediate response to terminal shorts
Over-temperature Protection: Safeguards against thermal issues

Product Images
