rincian produk

Rumah > Produk >

Lithium Polymer Battery Cell

Lithium Ion Cell 402050 3.7V 400mAh 1.48wh Rechargeable Li-polymer Lipo Battery Cells

Semua Kategori

Pengisi daya baterai yang dapat diisi ulang

RC Aksesoris

Hubungi Kami

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Hubungi Sekarang

Lithium Ion Cell 402050 3.7V 400mAh 1.48wh Rechargeable Li-polymer Lipo Battery Cells

Nama merek:	RESKY
Nomor Model:	LP402050
MOQ:	100 buah
harga:	dapat dinegosiasikan
Rincian kemasan:	Kotak kertas
Ketentuan Pembayaran:	T/T, Western Union

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

MSDS, Un38.3

Model TIDAK.:

LP402050

Kapasitas Nominal:

400mAh

Berat:

10 buah

Siklus Hidup:

500 siklus

Jaminan:

12 bulan

Pengiriman:

UPS, DHL, FedEx, TNT, melalui udara, melalui laut, garis khusus

Waktu memimpin:

3-7Hari kerja

Konektor:

Hanya saja, Molex....

Spesifikasi:

4*20*50mm

Menyediakan kemampuan:

50000pcs/hari

Menyoroti:

402050 lithium ion battery cell

3.7V rechargeable lipo battery

400mAh lithium polymer cell

Deskripsi Produk

Lithium Ion Cell 402050 3.7V 400mAh Rechargeable Battery

High-performance 3.7V 400mAh 1.48Wh rechargeable Li-polymer battery cell designed for compact electronic devices requiring reliable power in limited space.

Technical Specifications

Parameter	Specification
Battery Type	3.7V 400mAh Li-polymer
Charge Voltage	4.2V
Nominal Voltage	3.7V
Nominal Capacity	400mAh (0.2C Discharge)
Charge Current	Standard: 0.5C (200mA) Rapid: 1.0C (400mA)
Charging Method	0.5C CC to 4.2V, then CV until current ≤0.05C
Charging Time	Standard: ~2.75 hours Rapid: ~2 hours
Max Charge Current	1.0C (400mA)
Max Discharge Current	1.0C (400mA)
Discharge Cut-off Voltage	2.55V ±0.25V (0.2C)
Operating Temperature	Charging: 0°C to 45°C Discharging: 0°C to 45°C Storage: -10°C to 45°C
Dimensions	Length: 50±2mm Width: 20±0.5mm Thickness: 4±0.2mm
Cycle Life	≥500 cycles

Structural & Safety Features

Electrode System: NCM/NCA ternary cathode material with graphite anode
Packaging: Aluminum-plastic composite film soft-pack with flexibility (bending radius ≥5mm)
Electrolyte: Polymer gel electrolyte with superior thermal stability and no leakage risk
Safety Protection: Built-in PCM module for overcharge, over-discharge, overcurrent, and short circuit protection
Drop Test Certified: Withstands 1-meter drops onto concrete without fire or leakage

Primary Applications

Smart Wearables & Children's Products

Entry-level smart bracelets and watches (1-3 day battery life)
Children's phone watches, smart toy watches, GPS bracelets
Mini heart rate monitors, pedometers, cycling speed sensors

Medical & Health Equipment

Portable diagnostic devices: electronic thermometers, oximeters, blood pressure monitors
Rehabilitation aids: mini massagers, physiotherapy devices, hearing aids

IoT & Smart Home Devices

Low-power sensors: temperature/humidity, door/window, smoke detectors
Small smart home devices: smart door locks, mini cameras, wireless remotes

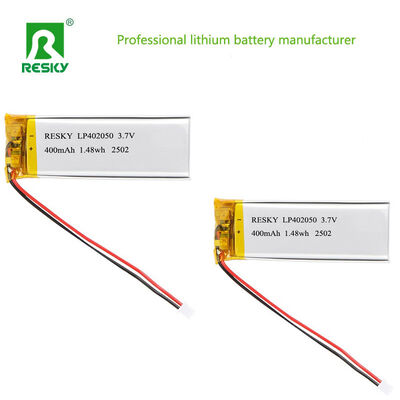

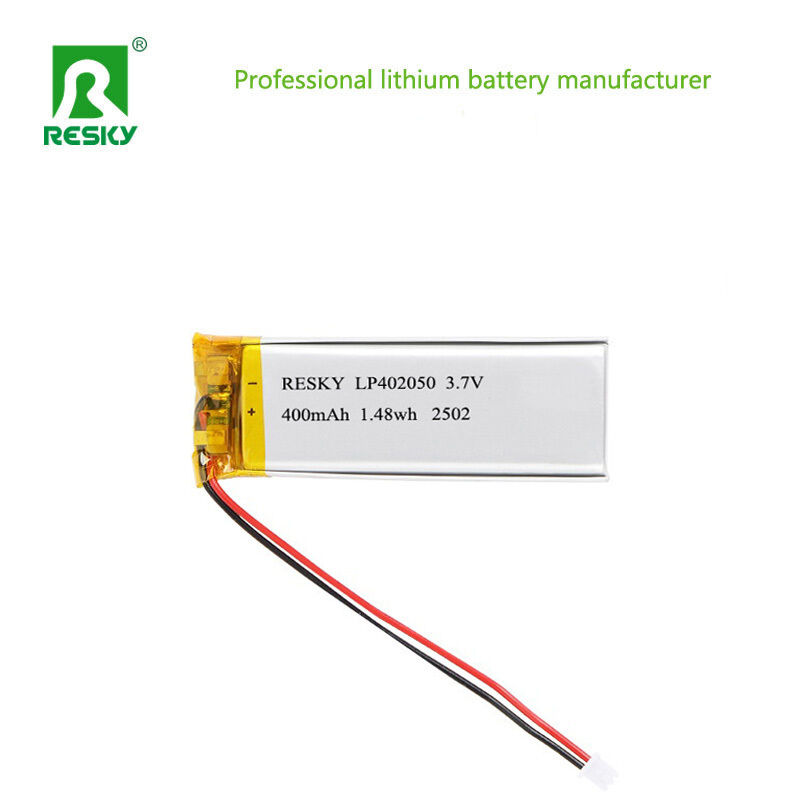

Product Images
