Paket Baterai Litium Polimer

Rechargeable Lifepo4 Battery Cell 705060 3000mAh 3.7V 3.8V Power Lithium Ion Polymer Batteries

Semua Kategori

Pengisi daya baterai yang dapat diisi ulang

RC Aksesoris

Hubungi Kami

Mrs. Alice

alice@szresky.com

0086 13530058480

0086 13530058480

Hubungi Sekarang

Rechargeable Lifepo4 Battery Cell 705060 3000mAh 3.7V 3.8V Power Lithium Ion Polymer Batteries

Nama merek:	RESKY
Nomor Model:	LP705060
MOQ:	10 pcs
harga:	dapat dinegosiasikan
Rincian kemasan:	Kotak kertas
Ketentuan Pembayaran:	T/T, Western Union

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

CE, RoHS, MSDS, Un38.3, IEC62133,ECT

Dokumen:

Membentuk:

Baterai persegi

Elektrolit:

Li (Nicomn) O2

Diisi ulang:

Dibebankan

Kapasitas nominal:

3000mAh

Arus Pengosongan Kontinyu:

Arus Pengosongan Maks:

Berat:

Siklus Kehidupan:

500 siklus

Spesifikasi:

10*40*60mm

Kode HS:

8507600090

Menyediakan kemampuan:

50000pcs/hari

Menyoroti:

Rechargeable Lifepo4 battery 3000mAh

Lithium Ion Polymer battery 705060

3.7V Power battery with warranty

Deskripsi Produk

Rechargeable Lifepo4 Battery Cell 705060 3000mAh 3.7V 3.8V Power Lithium Ion Polymer Batteries

Product Attributes

Attribute	Value
Shape	Square Battery
Electrolyte	Li(Nicomn)O2
Rechargeable	Chargeable
Nominal Capacity	3000mAh
Continuous Discharging Current	0.5c
Max Discharging Current	1c
Weight	65g
Cycle Life	500cycles
Specification	75060mm
HS Code	8507600090

Technical Specifications

NO.	Items	Specifications
1	Batteries	3.7v 3000mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	3000mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	0.5C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging:0°C ~45°C
12	Storage temperature	-10°C~ +45°C
13	Dimension	Length:60±2mm (not including tabs) Width:50±0.5mm Thickness:7±0.5mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500times

Main Features

Large Size, High Capacity Design
Integrated Design with Added Circuit Board and Wiring
Built-in Protection Board
Operating Temperature Range: Standard models support discharge from -20℃ to 60℃
Safety and Durability Guaranteed
Soft-pack Structure Advantages: Aluminum-plastic film encapsulation makes it less prone to explosion under abnormal conditions; it may only bulge or release gas, significantly safer than steel-cased batteries
Long Cycle Life: Under 0.2C charge/discharge conditions, cycle life exceeds 500 cycles, with a capacity retention rate ≥80%, suitable for long-term use
Compatibility and Customization Capabilities
Standard Voltage Adaptation: 3.7V nominal voltage is compatible with the power management systems of mainstream electronic devices (such as mobile phones and tablets), eliminating the need for additional step-down circuits
Flexible Customization Options: Adjustable wire length, connector type (such as Molex, Hirose), and protection board parameters support OEM/ODM mass production

Applications

1. Consumer Electronics and Entertainment Devices

Bluetooth Speakers and Headphones

Handheld Game Consoles and VR Accessories

Action Cameras and Drones

2. Smart Home and IoT Devices

Smart Lock Backup Power

Wireless Sensors and Surveillance Cameras

Robot Vacuum Cleaners and Lawn Mowers

3. Industrial and Professional Equipment

Instrumentation and Testing Equipment

Emergency Communication Equipment

Power Tools and Medical Equipment

4. Outdoor and Thermal Equipment

Heated Gloves and Protective Gear

Outdoor Lighting and Positioning Equipment

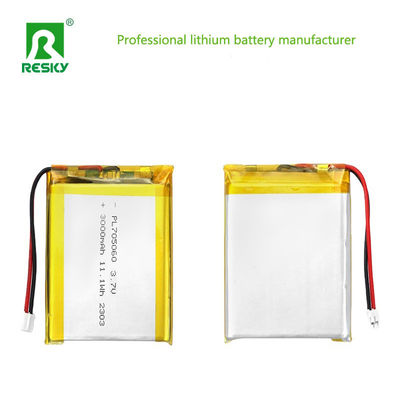

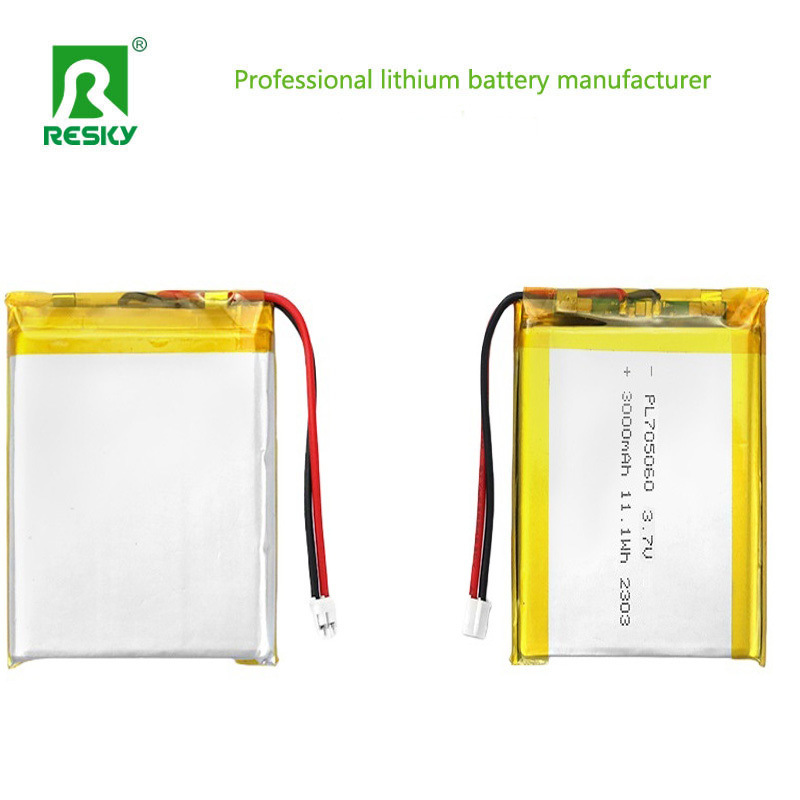

Product Images
